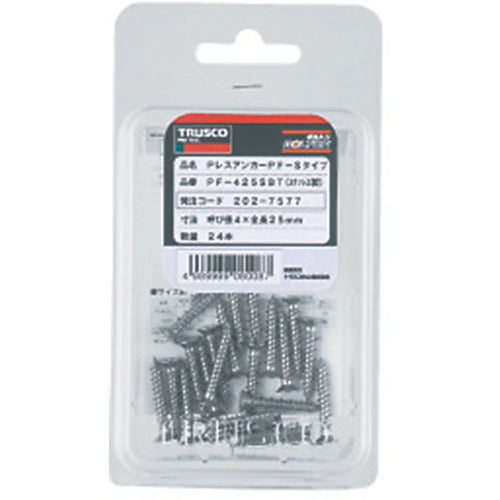

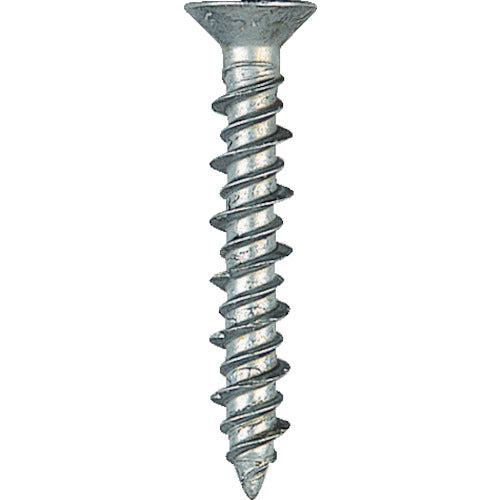

TRUSCO P-less anchor, flat head, stainless steel, 4 x 25, 24 pieces (for concrete, blocks, and wood/screw fixing type) PF-425SBT 1 PK

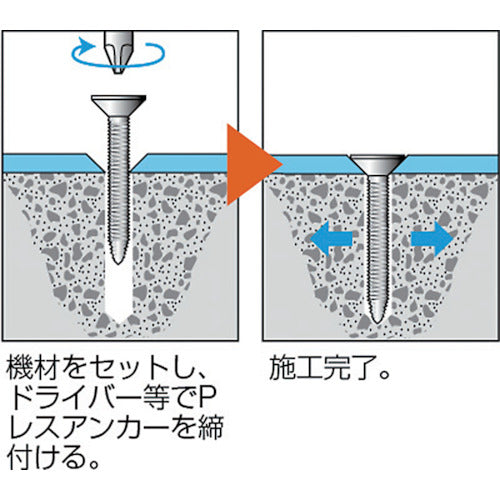

Catalog number: PF-425SBT Features: ●No need for plugs, so pilot holes can be small. ●Firmly fixed to the mating material with both high and low threads. Applications: ●For concrete, blocks, and wood. Specifications: ●Nominal diameter d (mm): 4 ●Pilot hole diameter (mm): 3.4 ●Embedding depth (mm): 22 ●Maximum tensile load (kN): 1.7 ●Drilling depth (mm): 35-t ●Length (mm): 25 ●Compatible driver: Phillips No. 2 ●Packed Material/Finish: ●Stainless steel (SUS410) Notes: ●The maximum tensile load is the value when the concrete strength is Fc21N/mm [squared]. ●The drilling depth is the value of the total length + 10mm-t (thickness of the object to be attached).
