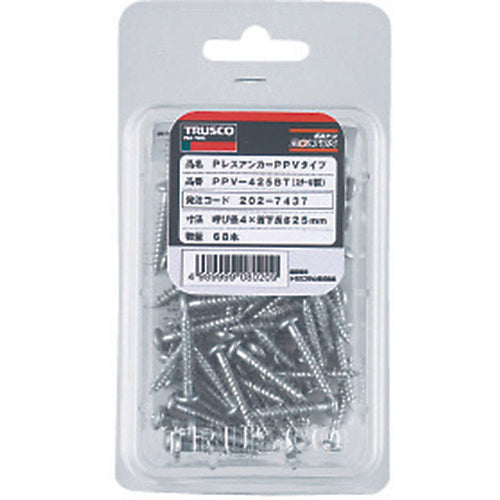

TRUSCO P-less anchor, pan head, steel, 4 x 25, 68 pieces (for concrete, blocks, and wood/screw fixing type) PPV-425BT 1 PK

Catalog number: PPV-425BT Features: ●No need for plugs, so pilot holes can be small. ●Firmly fixed to the mating material with both high and low threads. Applications: ●For concrete, blocks, and wood. ●For wiring and piping saddle fastening. Specifications: ●Nominal diameter d (mm): 4 ●Pilot hole diameter (mm): 3.4 ●Embedding depth (mm): 22 ●Maximum tensile load (kN): 1.7 ●Drilling depth (mm): 35-t ●Length (mm): 25 ●Compatible driver: Phillips No. 2 ●Packed Material/Finish: ●Steel ●Surface treatment: SV (Silver Big) treatment Note: ●The maximum tensile load is the value when the concrete strength is Fc 21N/mm [square]. ●The drilling depth is the value of length + 10mm-t (thickness of the attachment).
