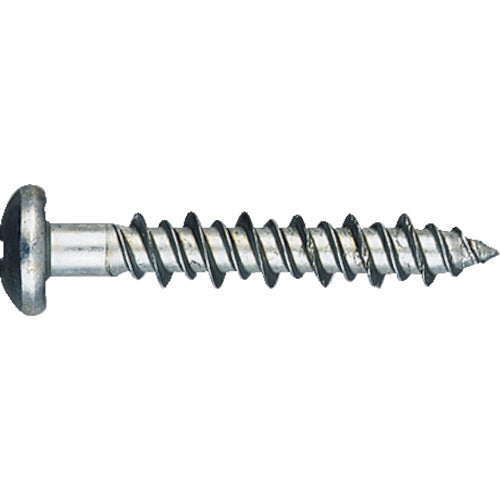

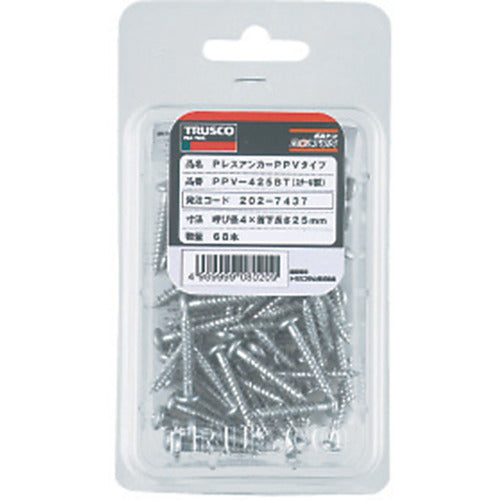

TRUSCO P-less anchor, pan head, steel, 4 x 32, 58 pieces (for concrete, blocks, and wood/screw fixing type) PPV-432BT 1 PK

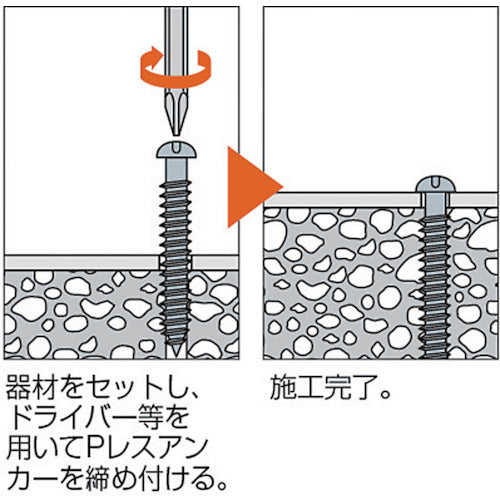

Catalog number: PPV-432BT Features: ●No need for plugs, so pilot holes can be small. ●Both high and low threads provide a strong bond to the mating material. Applications: ●For concrete, blocks, and wood. ●For wiring and piping saddle fastening. Specifications: ●Nominal diameter d (mm): 4 ●Pilot hole diameter (mm): 3.4 ●Embedding depth (mm): 30 ●Maximum tensile load (kN): 2.8 ●Drilling depth (mm): 42-t ●Length (mm): 32 ●Compatible screwdriver: Phillips No. 2 ●Packed Material/Finish: ●Steel ●Surface treatment: SV (Silver Big) treatment Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/mm [square]. ●The drilling depth is the value of the total length + 10mm-t (thickness of the attachment).
