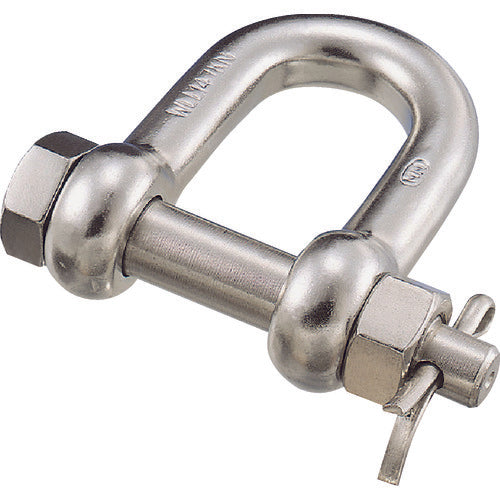

TRUSCO SBM shackle, stainless steel, length 88mm, inner width 44mm, TSBM-22, 1 piece

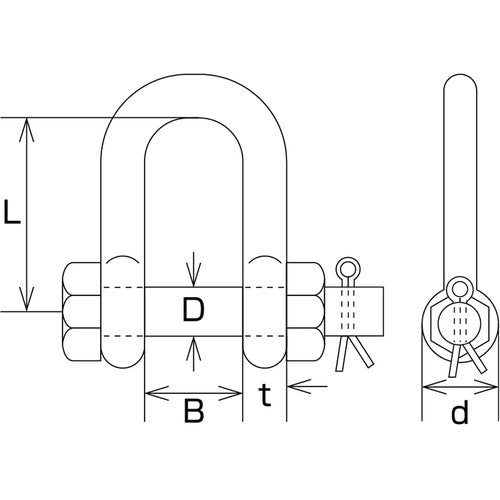

Catalogue number: TSBM-22 Features: ● Comes with a split pin, so the nut is less likely to come off. Applications: ● For connecting chains, wires, ropes, etc., and for joining terminal fittings. ● Particularly in places where there is a lot of vibration, etc., and where the pin may come loose with a normal shackle. Specifications: ● Working load (kN): 24.50 ● Thread diameter: M22 ● B (mm): 44 ● D (mm): 22 ● L (mm): 88 ● d (mm): 44 ● t (mm): 22 Material/Finish: ● Material: Stainless steel (SUS304) ● Surface treatment: Barrel polishing finish
