TRUSCO SGP U-Bolt, Unichrome, Nominal Diameter 20A, Thread Diameter W3/8, TSGP2-BT20A, 1 Piece

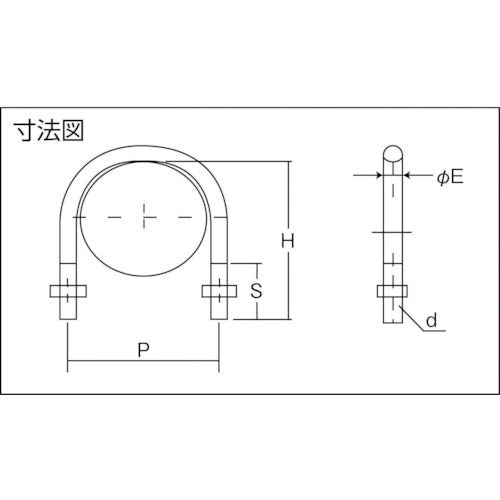

Catalogue number: TSGP2-BT20A Features: ●A representative U-shaped fitting. ●The oldest standard product for pipe support fittings. Applications: ●Fitting fitting for SGP pipes. ●For horizontal and vertical piping. ●Can also be used for horizontal and vertical piping. Specifications: ●Applicable pipe outer diameter (mm): 27.2 ●P (mm): 40 ●H (mm): 51 ●S (mm): 30 ●E (mm): 8.3 ●d (mm): W3/8 ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Nominal diameter (mm): 27.20 Material/Finish: ●Steel (SWCH) Set contents/Accessories: ●2 3/8 nuts
