TRUSCO SGP U-Bolt, Unichrome, Nominal Diameter 32A, Thread Diameter W3/8, TSGP2-BT32A, 1 Piece

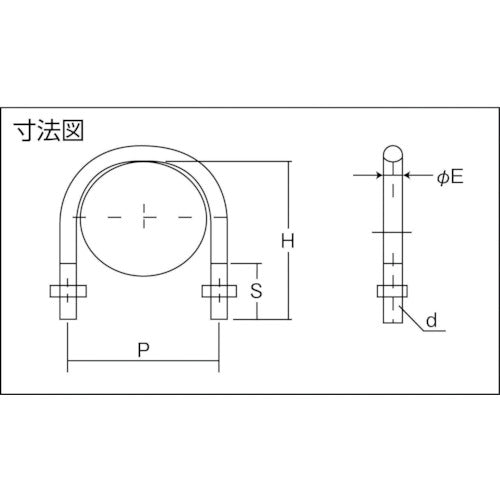

Catalogue number: TSGP2-BT32A Features: ●A representative U-shaped fitting. ●The oldest standard product for pipe support fittings. Applications: ●Fitting fitting for SGP pipes. ●For horizontal and vertical piping. ●Can also be used for horizontal and vertical piping. Specifications: ●Applicable pipe outer diameter D: 32A ●Applicable pipe outer diameter (mm): 42.7 ●P (mm): 56 ●H (mm): 68 ●S (mm): 30 ●E (mm): 8.3 ●d (mm): W3/8 ●Nominal diameter A: 32 ●Nominal diameter B: 1 1/4 ●Nominal diameter (mm): 42.70 Material/Finish: ●Steel (SWCH) Set contents/Accessories: ●2 3/8 nuts
