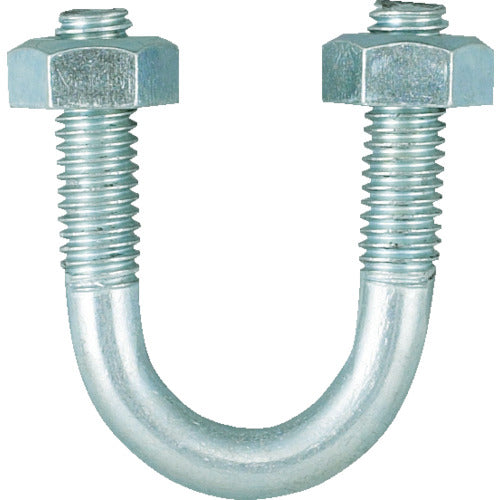

TRUSCO SGP U-Bolt, Unichrome, Nominal Diameter 80A, Thread Diameter W3/8, TSGP2-BT80A, 1 Piece

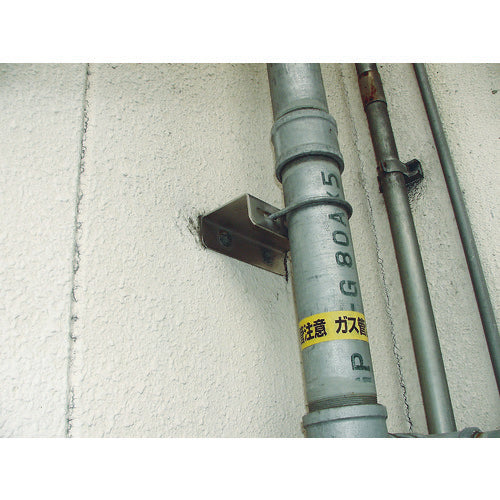

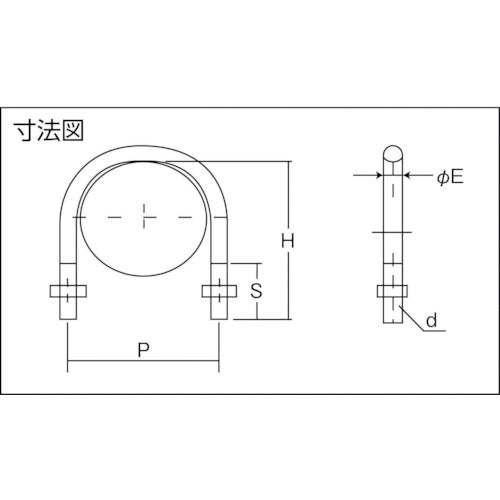

Catalogue number: TSGP2-BT80A Features: ●A representative U-shaped fitting. ●The oldest standard product for pipe support fittings. Applications: ●Fitting for SGP pipes. ●For horizontal and vertical piping. ●Can also be used for horizontal and vertical piping. Specifications: ●Applicable pipe outer diameter D: 80A ●Applicable pipe outer diameter (mm): 89.1 ●P (mm): 101 ●H (mm): 117 ●S (mm): 35 ●E (mm): 8.3 ●d (mm): W3/8 ●Nominal diameter A: 80 ●Nominal diameter B: 3 ●Nominal diameter (mm): 89.10 Material/Finish: ●Steel (SWCH) Set contents/Accessories: ●2 3/8 nuts
