TRUSCO SGP U-Bolt Trivalent Nickel Nominal Diameter 10A Thread Diameter M6 TSGP2-BTM6-10A 1 Piece

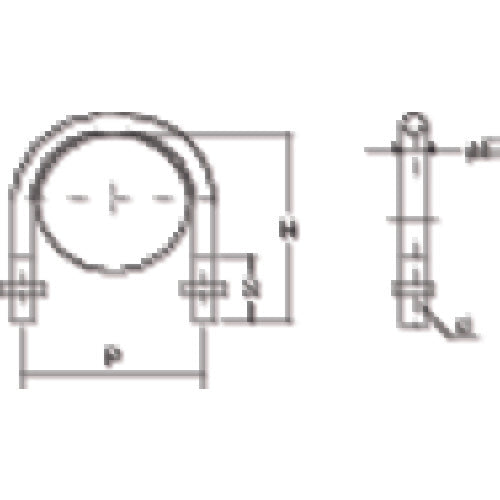

Catalogue number: TSGP2-BTM6-10A Features: ● U-shaped metal fitting with metric threads. ● Fastens by closing from the other side. Applications: ● SGP pipe tightening fitting. ● For horizontal and vertical piping. ● For fastening gas pipes, air conditioning pipes, and electrical panels. Specifications: ● Suitable pipe outer diameter D: 10A ● Suitable pipe outer diameter (mm): 17.3 ● P (mm): 25 ● H (mm): 33 ● S (mm): 18 ● E (mm): 5.23 ● d (mm): M6 ● Nominal diameter A: 10 ● Nominal diameter B: 3/8 Material/Finish: ● Steel (SWCH) Set contents/Accessories: ● Nuts x 2
