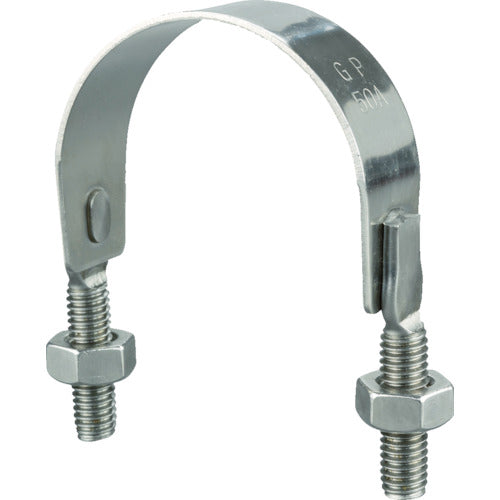

TRUSCO SGP pipe U-band SUS304 Nominal size 100A Thread diameter 3/8 TSGPU100A-SUS 1 piece

TRUSCO SGP pipe U-band SUS304 Nominal size 100A Thread diameter 3/8 TSGPU100A-SUS 1 piece

JAN：4550414067695 　
Construction and lighting supplies Pipe Support Fittings Pipework Equipment TRUSCO Piping Materials
¥2,732
¥2,732
Sale Sold out
Shipping calculated at checkout.

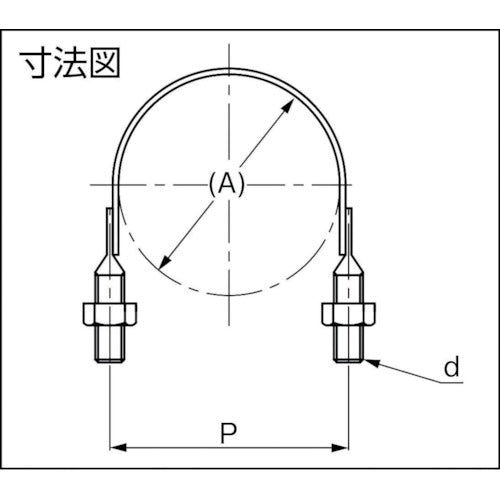

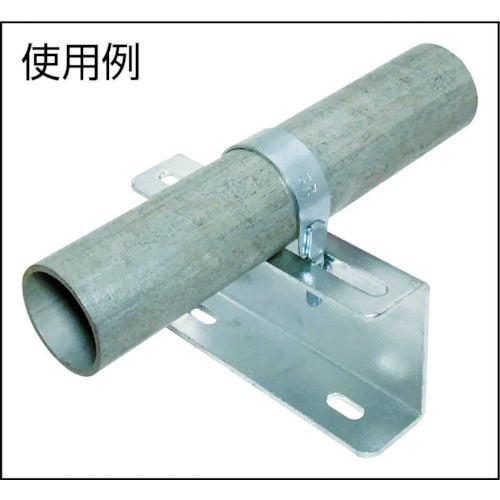

Catalog number: TSGPU100A-SUS Features: ● Pipe support bracket for supporting and preventing vibration of vertical pipes and for running horizontally on stands and brackets. Applications: ● For supporting and preventing vibration of pipes. Specifications: ● Applicable pipe outer diameter D: 100A ● Applicable pipe outer diameter (mm): 114.3 ● Dimensions (mm) t: 2.0 ● Dimensions (mm) W: 25 ● Dimensions (mm) B: 122 ● Dimensions (mm) d: 3/8 ● P (mm): 122 ● d (mm): W3/8 ● Nominal diameter A: 100 ● Nominal diameter B: 4 ● Material: Stainless steel (SUS304) Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● 3/8 nut x 2
View full details
