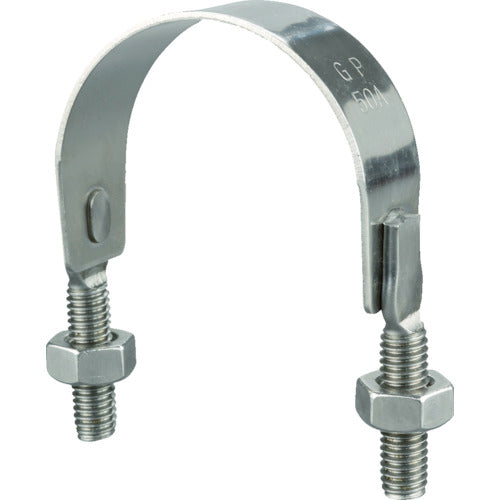

TRUSCO U-band for SGP pipes SUS304 Nominal size 20A Thread diameter 3/8 TSGPU20A-SUS 1 piece

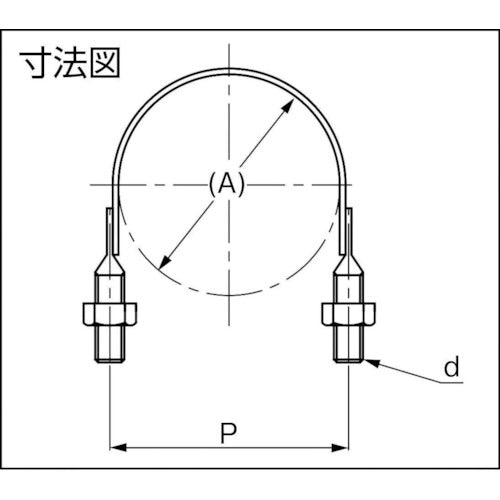

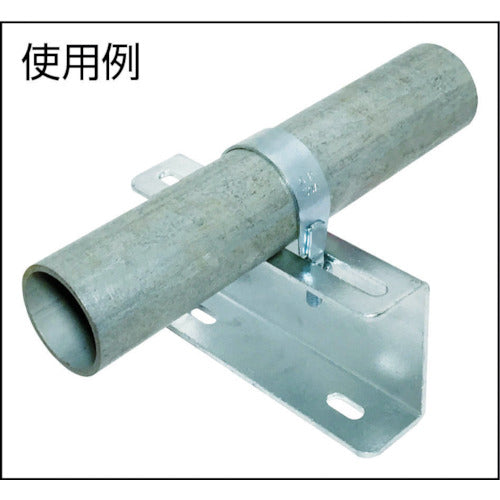

Catalogue number: TSGPU20A-SUS Features: ● Pipe support fittings for supporting and preventing vibration of vertical pipes and for running horizontally on stands and brackets. Applications: ● For supporting and preventing vibration. Specifications: ● Applicable pipe outer diameter D: 20A ● Applicable pipe outer diameter (mm): 27.2 ● Dimensions (mm) t: 2.0 ● Dimensions (mm) W: 25 ● Dimensions (mm) B: 38 ● Dimensions (mm) d: 3/8 ● P (mm): 38 ● d (mm): W3/8 ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● Material: Stainless steel (SUS304) Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● 3/8 nut x 2
