TRUSCO SUS Male Connector Applicable Tube Diameter 4X2 Thread R1/8 TS4-01M 1 pc

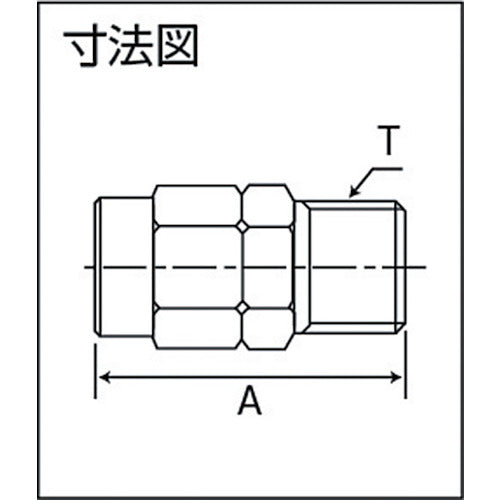

Catalog number: TS4-01M Features: ● Connects to fluororesin tubes. Applications: ● Ideal for clean air and pure water piping, chemicals, and corrosive gas piping. ● Food, chemical, medical, and semiconductor manufacturing, etc. ● No seal, so there is no corrosion from the seal. Specifications: ● Hexagonal side (mm): 10 ● Dimension A (mm): 22 ● Compatible tube outer diameter (mm): 4 ● Compatible tube inner diameter (mm): 2 ● Thread T: R1/8 ● Dimension (mm) A: 22 ● Fluid used: Clean air, pure water (corrosive fluid) ● Fluid temperature: Water 0 to 100°C, air -65 to 260°C Material/Finish: ● Stainless steel (SUS316) Note: ● Specifications (performance) are in accordance with the fluororesin tube to be connected.
