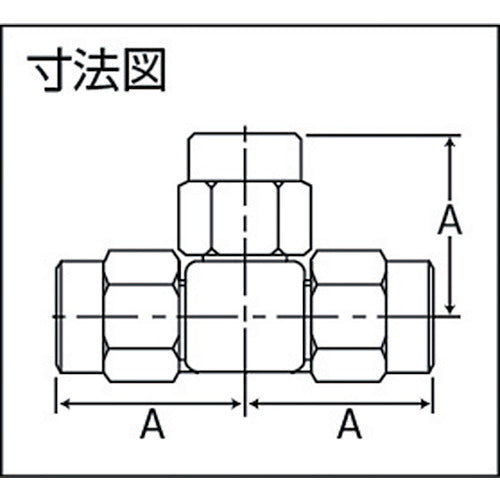

Catalog number: TS12-00UT Features: ● Connects to fluororesin tubes. Applications: ● Ideal for clean air and pure water piping, chemicals, and corrosive gas piping. ● Food, chemical, medical, and semiconductor manufacturing, etc. ● No seal, so there is no corrosion from the seal. Specifications: ● Hexagonal side (mm): 19 ● Dimension A (mm): 33 ● Compatible tube (mm) outer diameter x inner diameter: 12 x 10 ● Dimension (mm) A: 33 ● Fluid used: clean air, pure water (corrosive fluid) ● Fluid temperature: water 0 to 100°C, air -65 to 260°C Material/Finish: ● Stainless steel (SUS316) Note: ● Specifications (performance) are based on the fluororesin tube to be connected.
