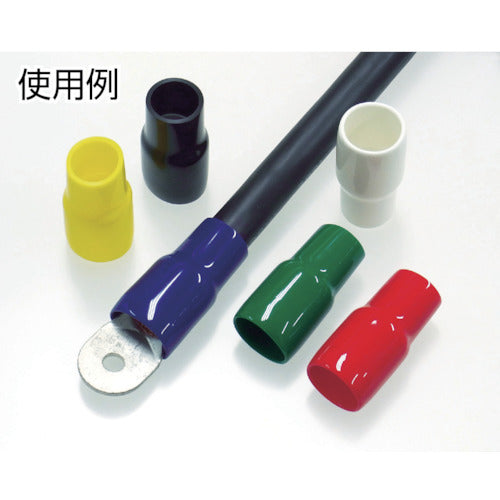

TRUSCO TCV Cap for 3.50mm2 Red 20 pieces TCV-3.5-R-20 1 bag

Catalog number: TCV-3.5-R-20 Features: ●Insulating cap for terminals crimped onto vinyl electric wires. ●Available in six different colors, making it ideal for color-coded display. ●Complies with the RoHS directive. Uses: ●As an insulating cap for terminals. Specifications: ●Color: Red ●Total length (mm): 17 ●Inner dimensions (mm): 4.1 ●Compatible terminals: For 3.5 mm squared ●Maximum operating temperature (℃): 60 ●Number of pieces per bag: 20 ●Operating temperature range: -40 to 60℃ Material/Finish: ●Soft PVC (Dielectric strength: 5 kV/mm or more)
