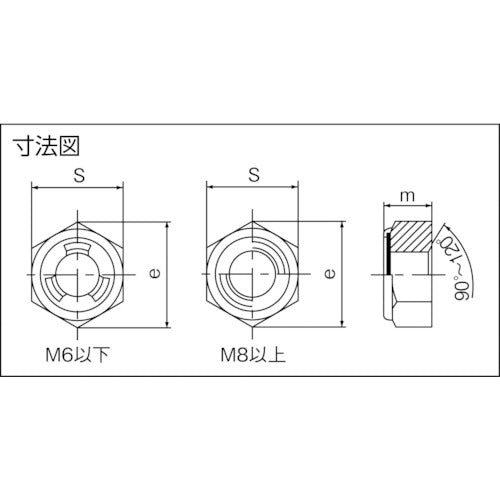

Catalog number: B70-0005 Features: ●The metal friction ring comes into contact with the threads of the bolt, generating a function that increases the torque of the threaded portion and provides an anti-loosening effect. ●Complies with tests conforming to the US aerospace standards NAS3350 and 3354. ●This product is heat-resistant, vibrates, and is reusable. Applications: ●Used in areas where bolts are likely to loosen when tightened. Specifications: ●Nominal diameter: M5 x 0.8 ●Two-sided width dimension (mm): 8 ●Height (mm): 4.6 ●Nut type: Anti-loosening nut ●Dimensions (mm) e: 9.2 ●Dimensions (mm) m: 4.6 ●Dimensions (mm) s: 8 ●Package: Bolt-on pack (blister) Material/Finish: ●Stainless steel (equivalent to SUS304) ●Friction ring: Stainless steel (SUS301)
