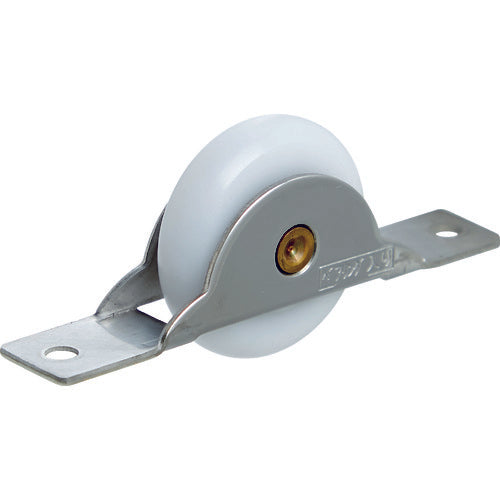

TRUSCO V-shaped door roller (for wooden fittings) Flat frame U-shaped Φ33 2 pieces THSN-35-33U 1 bag
TRUSCO V-shaped door roller (for wooden fittings) Flat frame U-shaped Φ33 2 pieces THSN-35-33U 1 bag
Regular price
¥776
Regular price
Sale price
¥776
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

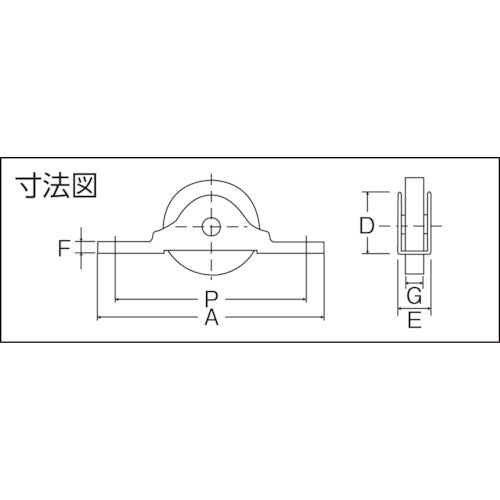

Catalogue number: THSN-35-33U Features: ●Barrier-free type for smooth opening and closing. Applications: ●Indoor wooden fittings. ●(For V-shaped rails) Specifications: ●Wheel diameter (mm): 33 ●Load capacity (kg) when using 2 pieces: 30 ●Total length (mm): 76 ●A (mm): 76 ●D (mm): 20 ●E (mm): 14 ●F (mm): 1.5 ●P (mm): 66 ●G (mm): 9 Material/Finish: ●Frame: Stainless steel (SUS304) ●Wheels: Polyacetal resin (with bearings) Notes: ●Mounting hole diameter (mm): 3
