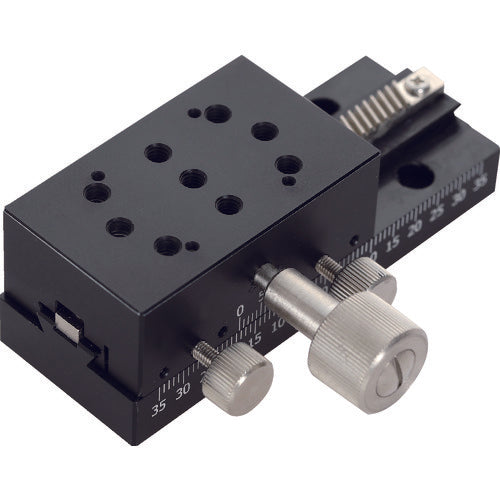

TRUSCO X-Stage Rack Pinion Long 30X50 Width 100mm ERPXL30100 1 pc

Catalog number: ERPXL30100 Features: ●Rack and pinion feed system allows for a large travel distance. ●Long stroke rack and pinion stage. ●Can be used widely for positioning cameras, sensors, etc. Applications: ●For positioning cameras, sensors, workpieces, etc. Specifications: ● Stage surface (mm): 30 x 50 ● Travel distance (mm): ±40 ● Travel accuracy straightness (μm): 50 ● Travel accuracy parallelism during movement (μm): 50 ● Horizontal load capacity (N): 29.4 ● Straightness (μm): 50 ● Parallelism during movement (μm): 50 ● Width (mm): 100 ● Depth (mm): 40 ● Thickness (mm): 28 ● Travel direction: X-axis direction ● Type: ● X-stage ● Rack and pinion ● Vertical load capacity (N): 14.7 ● Type ● X-stage ● Rack and pinion ● Travel distance: ±40mm ● Clamping method: Screw type ● Operation unit mounting position: Side ● Travel mechanism / feed method: Rack and pinion type ● Travel guide: Dovetail groove ● Travel distance: ±40mm ● Travel distance / 1 knob rotation: 16.7mm ● Graduation: 0.1mm ● Travel accuracy (m): Straightness 50μm, parallelism during movement 50μ Material/Finish: ●Table: Aluminum alloy ●Table surface treatment: Black anodized
