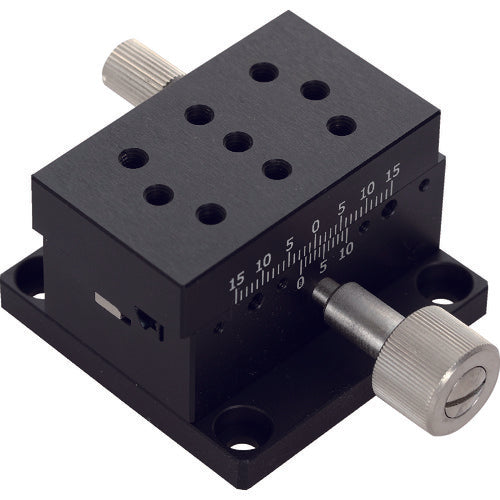

TRUSCO X-Stage Rack Pinion 40X60 ERPX60 1 pc

Catalog number: ERPX60 Features: ●Rack and pinion feed system provides a large travel distance. ●Can be used widely for positioning cameras, sensors, etc. Applications: ●For positioning cameras, sensors, workpieces, etc. Specifications: ● Stage surface (mm): 40 x 60 ● Travel distance (mm): ±21 ● Travel accuracy straightness (μm): 50 ● Travel accuracy parallelism during movement (μm): 50 ● Horizontal load capacity (N): 39.2 ● Straightness (μm): 50 ● Parallelism during movement (μm): 50 ● Width (mm): 60 ● Depth (mm): 40 ● Thickness (mm): 34 ● Travel direction: X-axis direction ● Vertical load capacity (N): 19.6 ● Clamping method: Screw type ● Operation unit mounting position: Side ● Travel mechanism / feed method: Rack and pinion type ● Travel guide: Dovetail groove ● Travel distance: ±21 mm ● Travel distance / one knob rotation: 16.7 mm ● Graduation: 0.1 mm ● Travel accuracy: Straightness 50 μm, parallelism during movement 50 μm Material / Finish: ● Table: Aluminum alloy ● Table surface treatment: Black anodized
