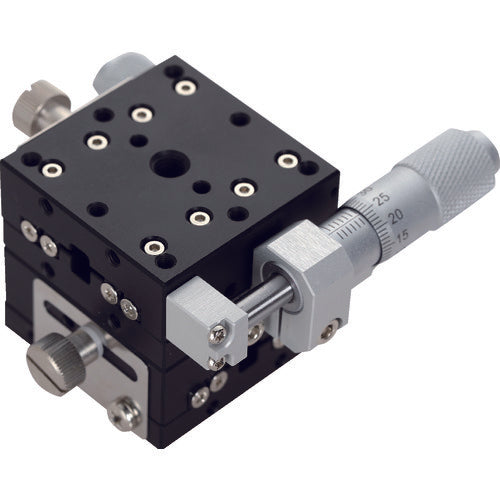

TRUSCO XY stage cross roller 60X60 center ECRXYC60 1 piece

Catalog number: ECRXYC60 Features: ● A stage that can be adjusted in 0.01 mm increments using a micrometer head. ● Can be widely used for precision positioning of cameras, sensors, workpieces, etc. Applications: ● For precision positioning of cameras, sensors, workpieces, etc. Specifications: ● Stage surface (mm): 60 x 60 ● Travel distance (mm): ±6.5 ● Travel accuracy straightness (μm): 30 ● Travel accuracy parallelism during movement (μm): 60 ● Horizontal load capacity (N): 44.1 ● Straightness (μm): 30 ● Parallelism during movement (μm): 60 ● Width (mm): 71 ● Depth (mm): 119 ● Thickness (mm): 40 ● Travel direction: 2 directions of XY axis ● Micrometer head position: Center ● Clamping method: Screw type ● Operation unit mounting position: Side ● Feed method: Micrometer head ● Travel guide: Cross roller ● Travel distance: ±6.5 mm ● Travel distance / one turn of knob: 0.5 mm ● Graduation: Micrometer type 0.01 mm ● Travel accuracy: Straightness 30 μm, parallelism during movement 60 μm Materials / Finish: ● Table: Aluminum alloy ● Table surface treatment: Black anodized
