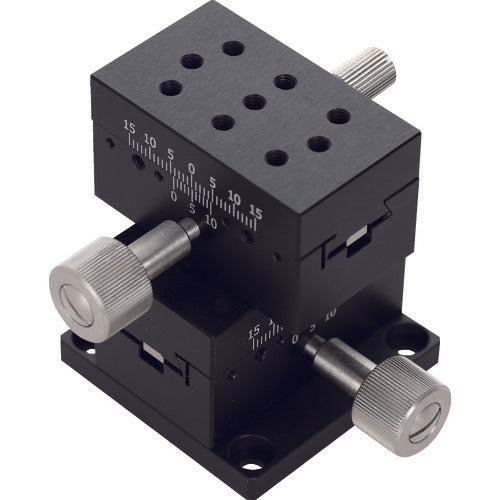

TRUSCO XY stage rack pinion 40X90 ERPXY90 1 piece

Catalog number: ERPXY90 Features: ●Rack and pinion feed system provides a large travel distance. ●Can be used widely for positioning cameras, sensors, etc. Applications: ●For positioning cameras, sensors, workpieces, etc. Specifications: ● Stage surface (mm): 40 x 90 ● Travel distance (mm): ±35 ● Travel precision straightness (μm): 50 ● Travel precision parallelism during movement (μm): 50 ● Horizontal load capacity (N): 34.3 ● Straightness (μm): 50 ● Parallelism during movement (μm): 50 ● Width (mm): 90 ● Depth (mm): 40 ● Thickness (mm): 62 ● Travel direction: 2 directions on XY axis ● Clamping method: Screw type ● Operation unit mounting position: Side ● Travel mechanism / feed method: Rack and pinion type ● Travel guide: Dovetail groove ● Travel distance: ±35 mm ● Travel distance / one knob rotation: 16.7 mm ● Graduation: 0.1 mm ● Travel precision: Straightness 50 μm, parallelism during movement 50 μm Materials / Finish: ● Table: Aluminum alloy ● Table surface treatment: Black anodized
