TSUYORON Belt-winding fall protection device Bell block No shock absorber 3.5m With pull rope BB-35-SN-BX 1 unit

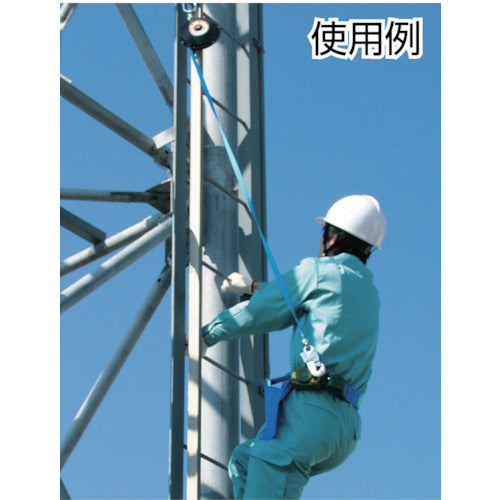

Catalog number: BB-35-SN-BX Features: ● Small safety block for ascending and descending. ● The strap is automatically wound up and lowered by spring force. ● In the event of an accident, it will stop within about 0.8 m. ● The strap will automatically follow when the worker moves. Uses: ● Fall prevention device for ascending and descending. Specifications: ● Fall impact load (kN): 8.0 kN or less ● Fall distance (m): 2.0 m or less ● Rope dimensions diameter (mm): 18 ● Main body dimensions (mm) length x width x depth: 151 x 121 x 73 ● Maximum load (kg): 120 ● Wire length (m): 3.5 ● Hook aperture (mm): 14 * Regarding the notation at the end of the part number. BP: Blister pack BX: Boxed (BOX) HD: Polyethylene bag ● Based on the safety belt construction guidelines ● * Regarding the notation at the end of the part number. BP: Blister pack BX: Boxed (BOX) HD: Polyethylene bag Material/Finish: Main body: Nylon resin Set contents/Accessories: Pulling rope Carabiner Caution: Please read the instruction manual before use. Please perform a pre-work inspection before use. Please have the manufacturer inspect the product every two years.
