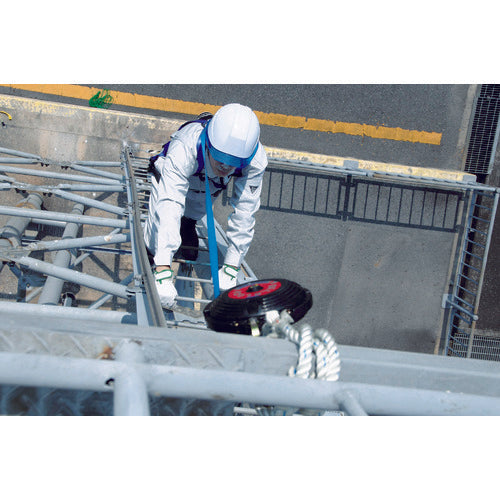

TSUYORON Belt-winding fall protection device Bell block No shock absorber 8m With pull rope BB-80-SN 1 unit

Catalog number: BB-80-SN Features: ● The case is impact-resistant and made of glass fiber reinforced resin reinforced with steel plate to prevent cracking. ● The strap is made of high-strength fiber covered with polyester. ● It is now possible to cover the current standard half roof with an 8m rope. ● The strap automatically follows the worker during normal work. ● In the event of a fall, the braking distance is about 0.8m. Uses: ● Fall prevention device for ascending and descending. Specifications: ● Fall impact load (kN): 8.0kN or less ● Fall distance (m): 2.0m or less ● Rope dimensions diameter (mm): 18 ● Body dimensions (mm) length x width x depth: 202 x 182 x 68 ● Maximum load capacity (kg): 120 ● Wire length (m): 8 ● Hook aperture (mm): 14 * About the notation at the end of the part number. BP: Blister pack BX: Boxed (BOX) HD: Polyethylene bag ● Conforms to safety belt construction guidelines ● Comes with carabiner ● Upper hook: FS-21 ● * Regarding the notation at the end of the part number. BP: Blister pack BX: Boxed (BOX) HD: Polyethylene bag Material/Finish: ● Synthetic resin with glass fiber ● Chemical fiber ● Aluminum ● Iron Set contents/Accessories: ● Pull rope ● Carabiner Caution: ● Be sure to read the instruction manual before use. ● Carry out a pre-work inspection before use. ● Have the product inspected by the manufacturer every two years.
