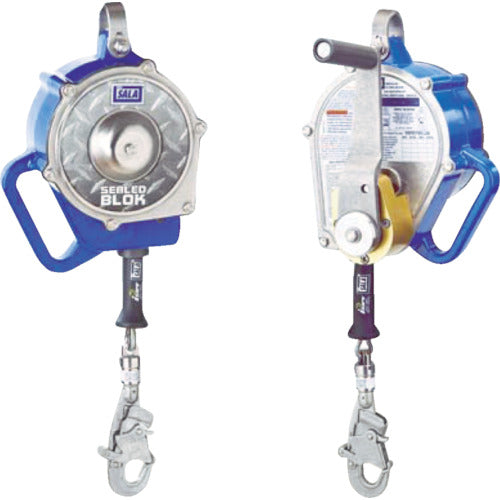

TSUYORON Wire rope winding fall protection device Shield block 9m with winch, with stand and pull rope SSB-9-W-BX 1 unit

Catalog number: SSB-9-W-BX Features: ●Can be used as a fall prevention device for ascending and descending, and also for fixed-position work at high altitudes. ●All parts other than the wire are shielded, providing a safe mechanism to keep out foreign objects. ●The winch is manual and is for rescue purposes. ●Can be used as a rescue winch by simply changing the lever position. Applications: ●In the event of an emergency, the lever on the main unit can be used as a winch to rescue victims. ●All parts inside the case except the wire are shielded, so it can be used in environments where synthetic fiber ropes cannot be used or in harsh high-altitude work environments such as salt damage. Specifications: ● Fall impact load (kN): 3.3 ● Fall distance (m): Within 1.2 ● Rope dimensions diameter (mm): 5 ● Main body dimensions (mm) length x width x depth: 292 x 239 x 224 ● Maximum load capacity (kg): 120 ● Wire length (m): 9 ● Hook aperture (mm): 20 ● Wire rope diameter (mm): 5 ● Wire rope length (m): 9.0 ● Based on safety belt construction guidelines ● With long rubber stopper ● With base rope ● With pull rope ● * About the notation at the end of the part number. BP: Blister pack BX: Boxed (BOX) HD: Polyethylene bag Note: ● To use safely, be sure to have the manufacturer inspect (charged) once every three years.
