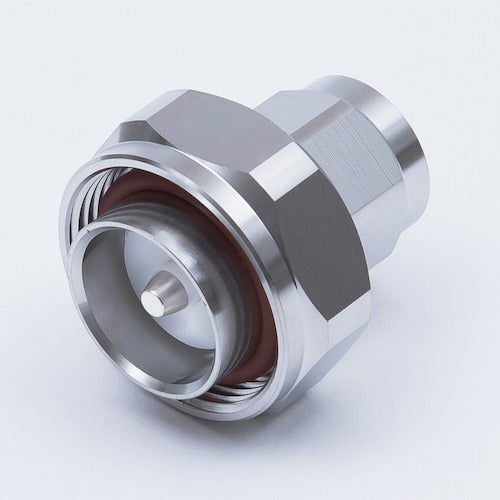

TYC conversion connector 7/16 DIN-N 7/16P-NP 1 piece

Catalog number: 7/16P-NP Features: ●Conversion connector. ●7/16 DIN-N. Applications: ●Conversion connector with 7/16 type plug and N type plug. ●Used to join different types of connectors. ●Body is brass with ternary plating. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 1kV max. at 50Hz Operating frequency range: Insulation resistance: 5GΩ or more at DC 500V Withstand voltage: AC 2.5kV at 50Hz for 1 minute Contact resistance: 1.5mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 6GHz) Operating temperature range: -45 to +85℃ Material/Finish: ●Center contact: Brass/silver plated Outer contact: Brass/ternary plating
