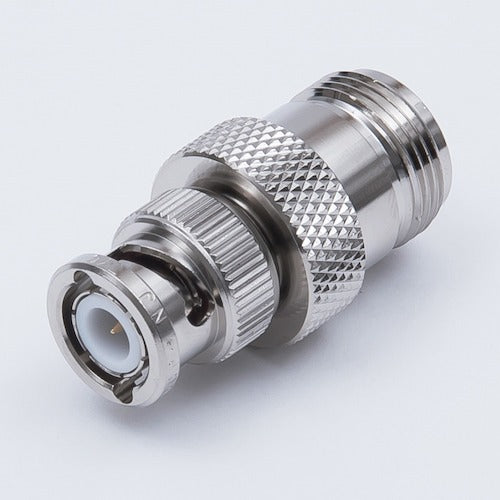

TYC conversion connector BNC-N BNCP-NJ 1 piece

Catalog number: BNCP-NJ Features: ●Conversion connector. ●BNC-N. Applications: ●Conversion connector with BNC plug and N-type jack. ●Used to join different types of connectors. ●Body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4000MHz or less Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 2GHz) Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Phosphor bronze/gold plating External contact: Brass/nickel plating
