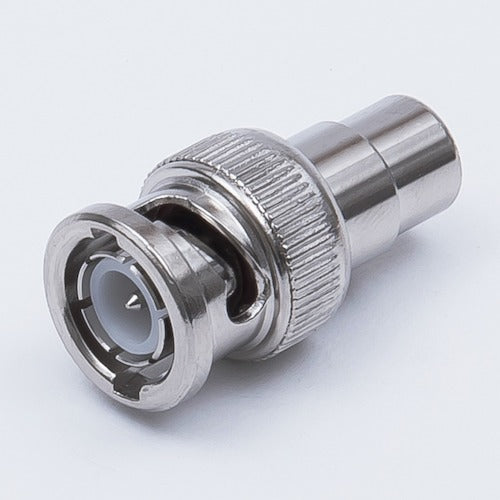

TYC conversion connector BNC-RCA BNCP-RCAJ 1 piece

Catalog number: BNCP-RCAJ Features: ●Conversion connector. Applications: ●Conversion connector with a BNC plug and an RCA jack. ●Used to join different types of connectors. ●The main body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: Mismatched Rated voltage AC: Operating frequency range: Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 500V for 1 minute Contact resistance: BNC (3mΩ or less), RCA (10mΩ or less) Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Brass/nickel-plated Outer contact: Brass/nickel-plated
