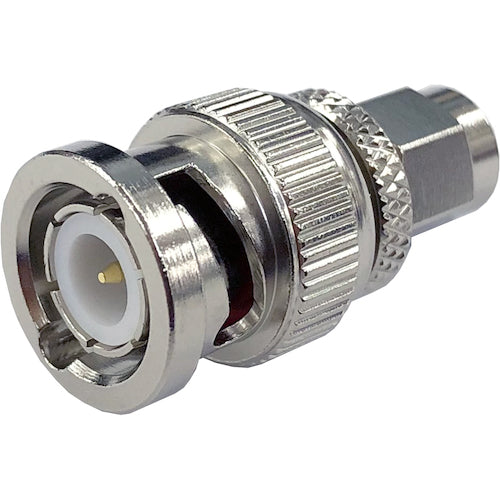

TYC conversion connector BNC-SMA BNCP-A-SMAP 1 piece

Catalog number: BNCP-A-SMAP Features: ●Conversion connector. ●BNC-SMA. Applications: ●Conversion connector with BNC plug and SMA plug. ●Used to join different types of connectors. ●The main body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 335V Operating frequency range: 15.0GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 4GHz), 1.3 or less (4 to 15GHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Brass/gold plated Outer contact: Brass/nickel plated
