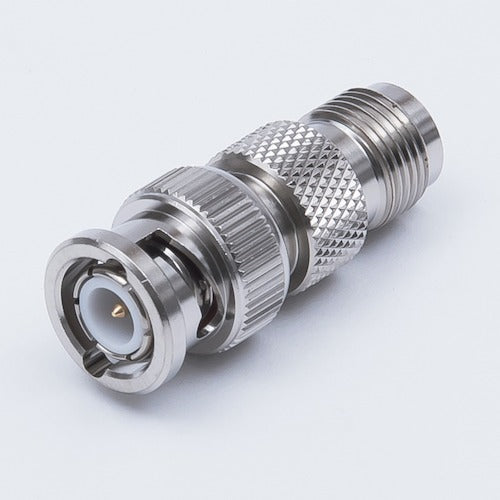

TYC conversion connector BNC-TNC BNCP-TNCJ 1 piece

Catalog number: BNCP-TNCJ Features: ●Conversion connector. ●BNC-TNC. Applications: ●Conversion connector with a BNC plug and a TNC jack. ●Used to join different types of connectors. ●The main body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 3GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: Voltage standing wave ratio: 1.2 or less (DC to 1500MHz) Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Phosphor bronze/gold plated Outer contact: Brass/nickel plated
