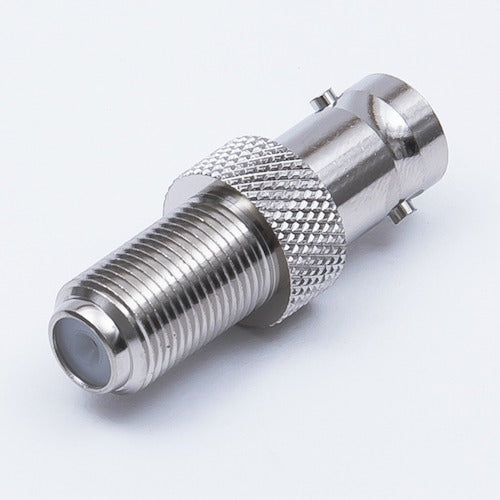

TYC conversion connector F-BNC FJ-BNCJ 1 piece

Catalogue number: FJ-BNCJ Features: ●Conversion connector. Applications: ●Conversion connector with F-type jack and BNC-type jack. ●Used to join different types of connectors. ●Body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: Mismatched Rated voltage AC: AC 150V Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 500V for 1 minute Contact resistance: 5mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Brass, phosphorus bronze/gold plated External contact: Brass/nickel plated
