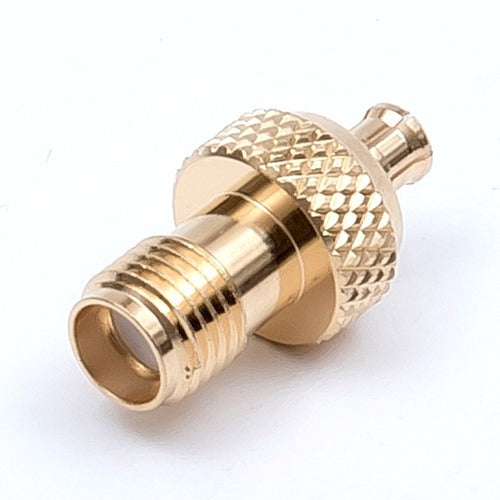

TYC conversion connector MCX-SMA MCX-P-SMAJ 1 piece

Catalog number: MCX-P-SMAJ Features: ●Conversion connector. ●MCX-SMA. Applications: ●Conversion connector with MCX plug and SMA jack. ●Used to join different types of connectors. ●The body is gold-plated beryllium copper on the MCX side and gold-plated brass on the SMA side. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 50Ω Rated voltage AC: Operating frequency range: 6GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: DC 1000V for 1 minute Contact resistance: 5mΩ or less Voltage standing wave ratio: 1.3 or less (0 to 6GHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Beryllium copper/gold plating External contact: Brass, beryllium copper/gold plating
