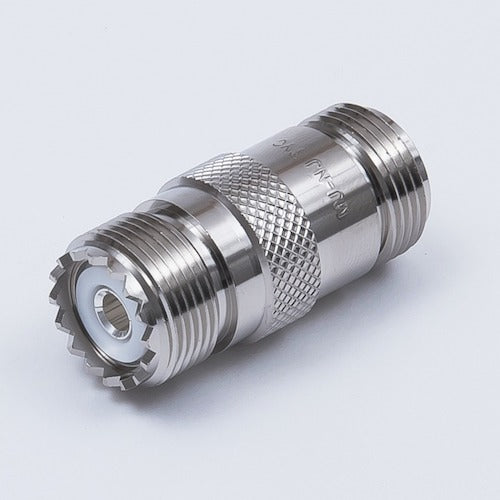

TYC conversion connector M-N MJ-NJ 1 piece

Catalogue number: MJ-NJ Features: ●Conversion connector. Applications: ●Conversion connector with M-type jack and N-type jack. ●Used to join different types of connectors. ●Body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: Mismatched Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Phosphor bronze/silver plated External contact: Brass/nickel plated
