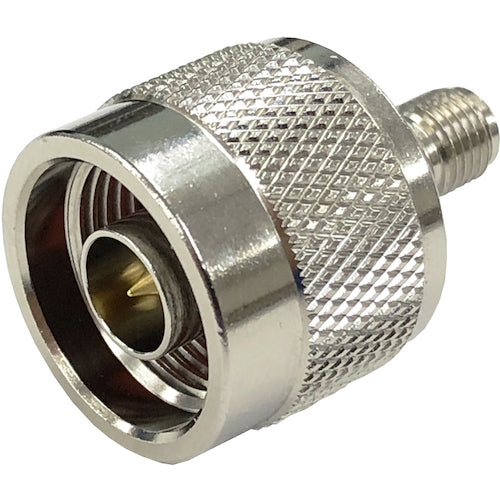

TYC Conversion Connector N-SMA NP-SMAJ-18G 1 piece

Catalog number: NP-SMAJ-18G Features: ●Conversion connector. ●N-SMA. Applications: ●Conversion connector with N-type plug and SMA jack. ●Used to join different types of connectors. ●Body is nickel-plated brass. ●Supports up to 18GHz. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 18.0GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.15 or less (DC to 9GHz), 1.2 or less (9 to 15GHz), 1.4 or less (15 to 18GHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Beryllium copper/gold plating External contact: Brass/nickel plating
