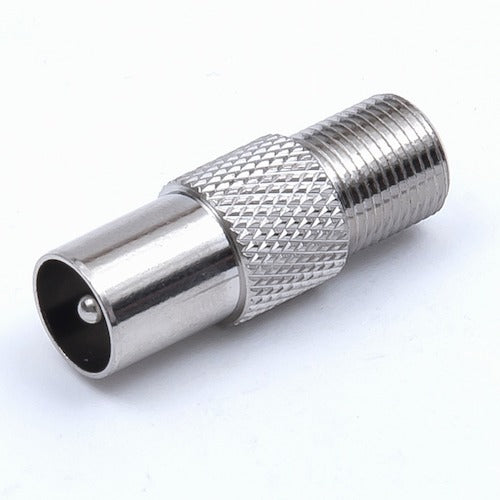

TYC conversion connector PAL-F PAL-P-FJ 1 piece

Catalogue number: PAL-P-FJ Features: ●Conversion connector. Applications: ●Conversion connector with PAL type plug and F type jack. ●Used to join different types of connectors. ●Body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: Mismatched Rated voltage AC: Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 500V for 1 minute Contact resistance: F (5mΩ or less), PAL (10mΩ or less) Voltage standing wave ratio: Operating temperature range: -20 to +65°C Material/Finish: ●Center contact: Brass/nickel-plated Outer contact: Brass/nickel-plated
