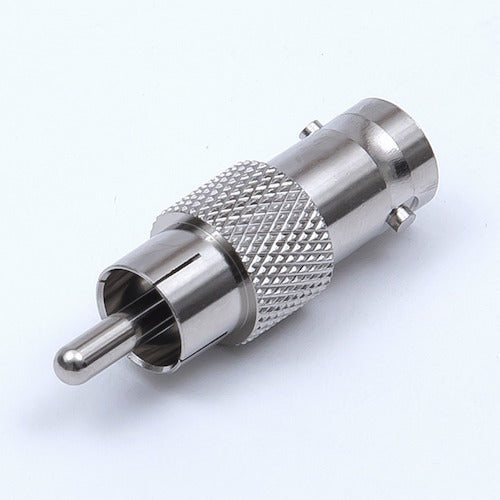

TYC conversion connector RCA-BNC RCAP-BNCJ 1 piece

Catalogue number: RCAP-BNCJ Features: ●Conversion connector. Applications: ●Conversion connector with RCA plug and BNC jack. ●Used to join different types of connectors. ●Body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: Mismatched Rated voltage AC: Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 500V for 1 minute Contact resistance: RCA (50mΩ or less), BNC (3mΩ or less) Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Brass/nickel-plated Outer contact: Brass/nickel-plated
