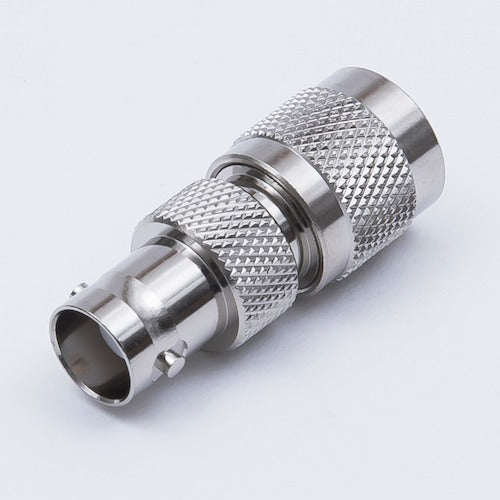

TYC conversion connector TNC-BNC TNCP-BNCJ 1 piece

Catalog number: TNCP-BNCJ Features: ●Conversion connector. ●TNC-BNC. Applications: ●Conversion connector with a TNC plug and a BNC jack. ●Used to join different types of connectors. ●The main body is nickel-plated brass. Specifications: ●Connector shape: Conversion connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4000MHz or less Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (0.05 to 2.5GHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Phosphor bronze/gold plated Outer contact: Brass/nickel plated
