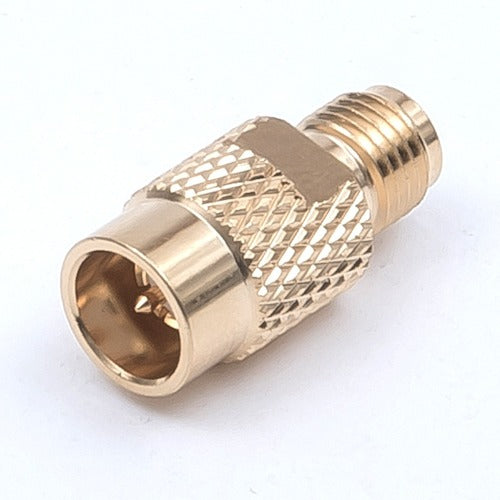

TYC Measurement Quick Adapter SMA-QA-JP 1 piece

Catalog number: SMA-QA-JP Features: ●Quick adapter for measurement. Applications: ●SMA relay adapter used for measurement. ●Body is gold plated. ●Plug-jack type, one-touch mating by simply inserting the plug side. Specifications: ●Connector shape: Quick adapter for measurement ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 18GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.3 or less (DC to 18GHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Beryllium copper/gold plated Outer contact: Beryllium copper, brass/gold plated
