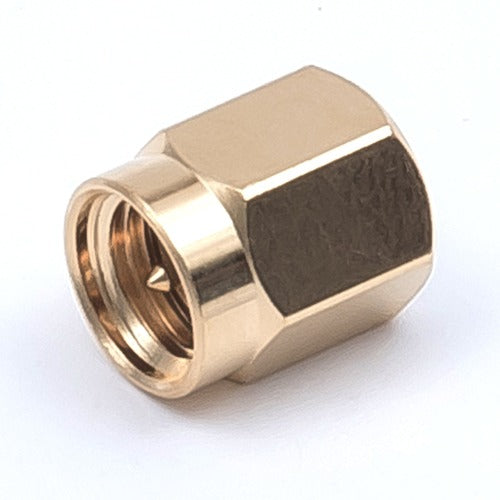

TYC terminator SMA50-SP 1W 1 piece

Catalog number: SMA50-SP 1W Features: ●Terminator. Applications: ●SMA non-reflective terminator (termination). ●The mating part is a plug, and is mainly used to fill the receptacle of equipment. ●IPX7 waterproof. ●Supports power up to 1W. ●High-performance product that can handle frequencies up to 18GHz. ●Voltage standing wave ratio (VSWR) is 1.15 or less (DC to 4GHz), 1.2 or less (4 to 8GHz), 1.25 or less (8 to 12.4GHz), and 1.3 or less (12.4 to 18GHz). Specifications: Connector type: Termination Characteristic impedance: 50Ω Rated voltage AC: Operating frequency range: 18GHz Insulation resistance: Withstand voltage: Contact resistance: Voltage standing wave ratio: 1.15 or less (DC to 4GHz), 1.2 or less (4 to 8GHz), 1.25 or less (8 to 12.4GHz), 1.3 or less (12.4 to 18GHz) Operating temperature range: Rated power (W): 1W Material/Finish: Center contact: Brass/gold plated Outer contact: Brass/nickel plated
