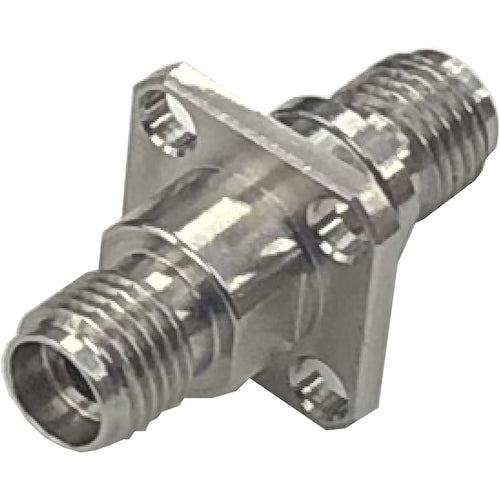

TYC 2.92mm K Connector Panel Adapter K292-PA-JJ 1 piece

Catalog number: K292-PA-JJ Features: ●Panel adapter for 2.92 mm K connector. Applications: ●Panel-mount type 2.92 mm K connector, relay adapter, with mating compatibility with SMA and 3.5 mm connectors. ●High-performance product that can handle up to 40 GHz. ●Jack-jack type. Specifications: ●Connector shape: 2.92 mm K connector ●Characteristic impedance: 50 Ω Rated voltage AC: Operating frequency range: 40 GHz Insulation resistance: 5000 MΩ or more at DC 500 V Withstand voltage: AC 750 V for 1 minute Contact resistance: 3 mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 40 GHz) Operating temperature range: -40 to +105°C Materials/Finish: ●Center contact: Beryllium copper/gold plating External contact: Stainless steel/passivated treatment
