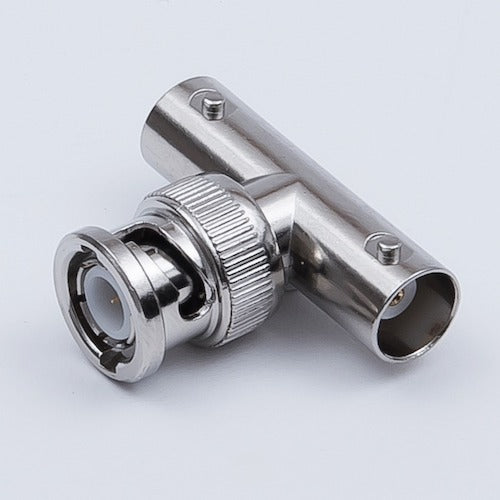

TYC BNC Connector Adapter BNC-TA-JPJ-K 1 piece

Catalog number: BNC-TA-JPJ-K Features: ● BNC connector adapter. Applications: ● T-shaped BNC relay adapter. ● Body is nickel-plated brass. ● Plug-jack-jack type. Specifications: ● Connector shape: BNC connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 3GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 200MHz) Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Brass/gold plated External contact: Brass, zinc die-cast/nickel plated
