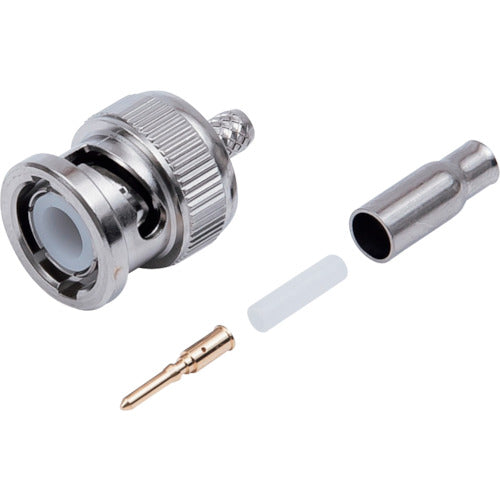

TYC BNC connector straight plug BNCP-1.5AK 1 piece

Catalog number: BNCP-1.5AK Features: ●BNC type straight plug compatible with 1.5D-2V, 1.5D-QEV, EM-1.5D-2E cables. ●Both the center contact and the main body are crimp type, making them easy to process and inexpensive. ●Crimping tool TA-16 is required for installation. Specifications: Connector type: BNC connector Installation method: Center: Crimping/External: Crimping Compatible wires: 1.5D-2V/1.5D-QEV/EM-1.5D-2E Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Crimping tool: TA-16 Material/Finish: Center contact: Brass, gold plated, crimping External contact: Brass, nickel plated, crimping
