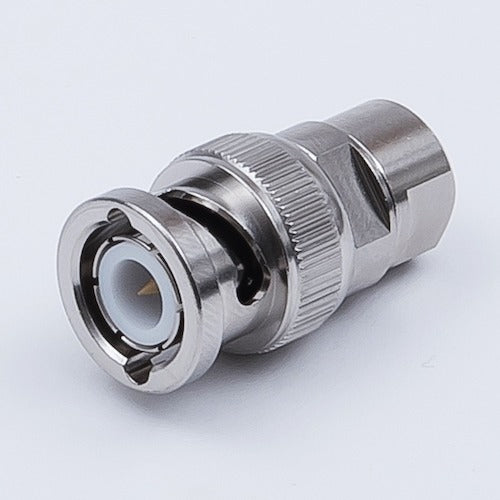

TYC BNC connector straight plug BNCP-1.5NR 1 piece

Catalog number: BNCP-1.5NR Features: ● Straight plug of BNC connector. Applications: ● BNC type straight plug compatible with 1.5D-2V, 1.5D-QEV, 1.5C-2V, 1.5C-QEV cables. ● Fewer parts and easier to process than BNCP-1.5 with rubber. ● Can be used with 75Ω cables up to 200MHz. ● The center contact is a solder type, and the main body is a clamping type. Specifications: Connector type: BNC connector Installation method: Center: soldering/External: clamping Compatible wires: 1.5D-2V/1.5D-QEV/1.5C-2V/1.5C-QEV Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 2GHz) 1.5D-2V ●When using 1.5D-QEV ●1.2 or less (DC to 200MHz) 1.5C-2V ●When using 1.5C-QEV Operating temperature range: -40 to +85°C Material/Finish: Center contact: Brass/gold plating/soldering External contact: Brass/nickel plating/clamping
