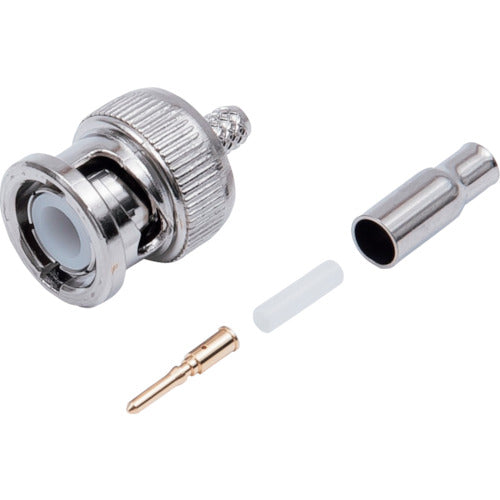

TYC BNC connector straight plug BNCP-174A 1 piece

Catalog number: BNCP-174A Features: ●BNC connector straight plug. Applications: ●BNC type straight plug compatible with RG-174/U ●RG-316/U ●RG-188A/U cables. ●Both the center contact and the main body are crimp type, making them easy to process and inexpensive. ●A crimping tool TA-16 is required for installation. Specifications: Connector type: BNC connector Installation method: Center: Crimping / External: Crimping Compatible wires: RG-174/U/RG-316/U/RG-188A/U Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 750V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.3 or less (300kHz to 500MHz) Operating temperature range: -40 to +85°C Crimping tool: TA-16 Material/Finish: Center contact: Brass/gold plated/crimping External contact: Brass/nickel plated/crimping
