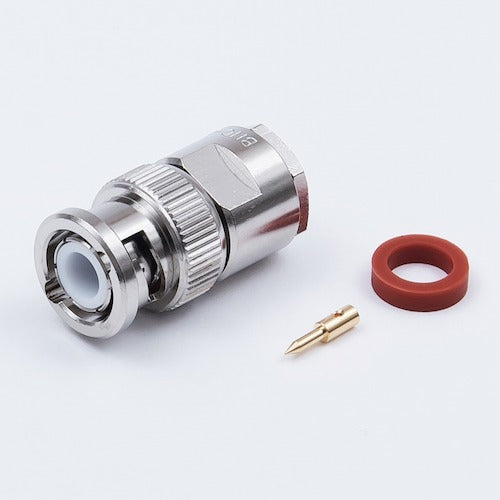

TYC BNC connector straight plug BNCP-3W 1 piece

Catalog number: BNCP-3W Features: ● Straight plug of BNC connector. Applications: ● BNC type straight plug compatible with 3D-2W and 3C-2W cables. ● Can be used with 75Ω cables up to 200MHz. ● The main body is a clamping type, which increases the robustness of the cable connection. ● Center contact is a solder type. Specifications: ● Connector shape: BNC connector ● Installation method: Center: solder / External: clamping ● Compatible wire: 3D-2W / 3C-2W ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85℃ Material / Finish: ● Center contact: Brass / gold plated / soldering External contact: Brass / nickel plated / clamping
