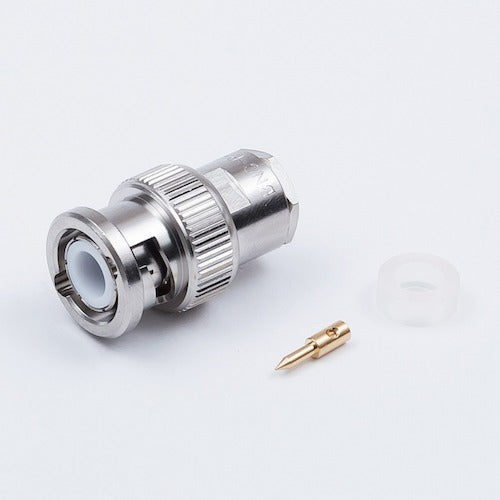

TYC BNC connector straight plug BNCP-55/U 1 piece

Catalog number: BNCP-55/U Features: ● Straight plug of BNC connector. Applications: ● BNC type straight plug compatible with RG-55/U cable. ● The main body is a clamping type, and the robustness of the cable connection is high. ● Center contact is a solder type. Specifications: ● Connector shape: BNC connector ● Installation method: Center: solder / External: clamping ● Applicable wire: RG-55/U ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 800MHz) Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Brass/gold plating/soldering External contact: Brass/nickel plating/clamping
