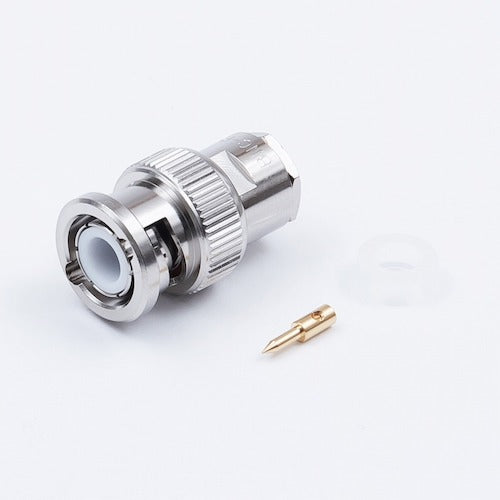

TYC BNC connector straight plug BNCP-58/U 1 piece

Catalog number: BNCP-58/U Features: ●BNC connector straight plug. Applications: ●BNC type straight plug compatible with RG-58/U and RG-58A/U cables. ●The main body is a tightening type, which increases the robustness of the cable connection. ●The center contact is a solder type. Specifications: Connector type: BNC connector Installation method: Center: soldering/External: clamping Compatible wires: RG-58/U RG-58A/U Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 500MHz) Operating temperature range: -40 to +85°C Material/Finish: Center contact: Brass/gold plating/soldering External contact: Brass/nickel plating/clamping
