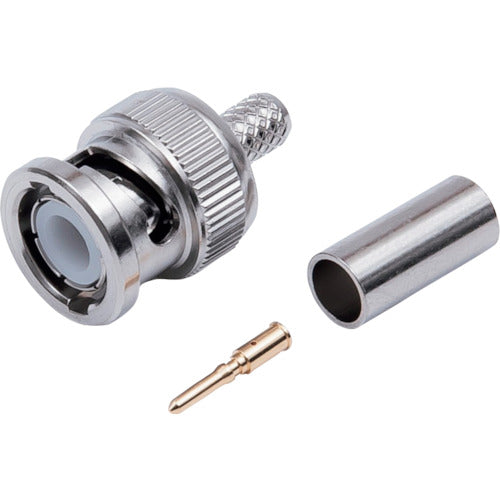

TYC BNC connector straight plug BNCP-58A-K 1 piece

Catalog number: BNCP-58A-K Features: ● Straight plug of BNC connector. Applications: ● BNC type straight plug compatible with RG-58/U, RG-58A/U cables. ● Both the center contact and the main body are crimp type, making them easy to process and inexpensive. ● Crimping tool TA-34 or TA-35 is required for installation. Specifications: Connector type: BNC connector Installation method: Center: Crimping / External: Crimping Compatible wires: RG-58/U RG-58A/U Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 3GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Crimping tool: TA-34 TA-35 Material/Finish: Center contact: Brass/gold plating/crimping External contact: Brass/nickel plating/crimping
