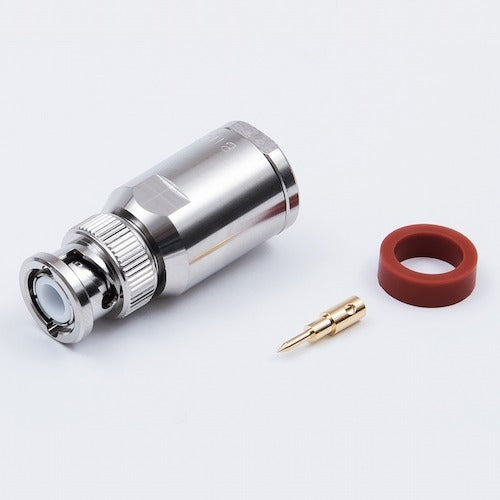

TYC BNC connector straight plug BNCP-7 1 piece

Catalog number: BNCP-7 Features: ● Straight plug of BNC connector. Applications: ● BNC type straight plug compatible with 7C-2V, S-7C-FB, RG-8/U, EM-7C-2E cables, etc. ● Can be used with 75Ω cables up to 200MHz. ● The main body is a clamping type, and the robustness of the cable connection is high. ● The center contact is a solder type. Specifications: Connector type: BNC connector Installation method: Center: soldering/External: clamping Compatible wires: 7C-2V 7C-FB S-7C-FB RG-8/U RG-11/U EM-7C-2E Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: Center contact: Brass/gold plating/soldering External contact: Brass/nickel plating/clamping
