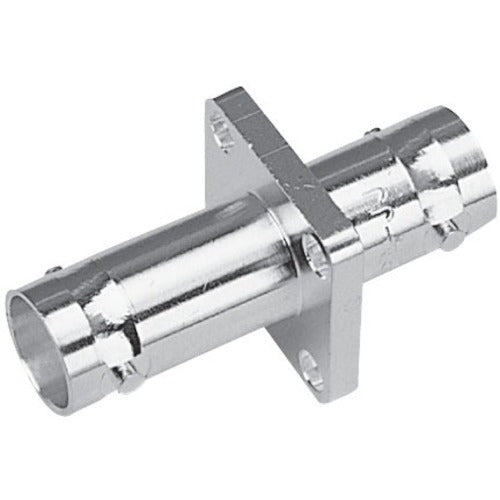

TYC BNC Connector Panel Adapter BNC-PA-JJ 1 piece

Catalog number: BNC-PA-JJ Features: ● Panel adapter for BNC connector. Applications: ● Panel-mount type BNC relay adapter. ● Body is nickel-plated brass. ● Jack-jack type. Specifications: ● Connector shape: BNC connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 2000MHz) Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Phosphor bronze/gold plating External contact: Brass/nickel plating
