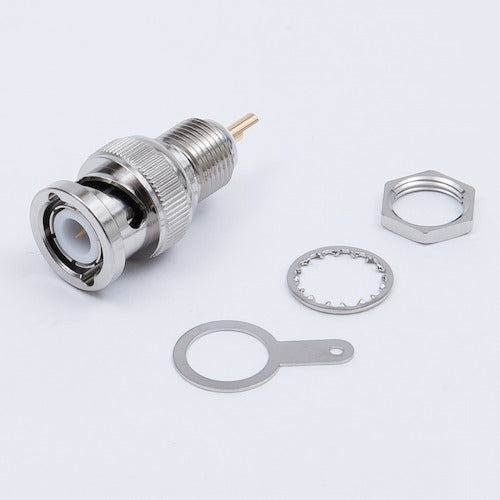

TYC BNC connector receptacle BNC-PBR 1 piece

Catalog number: BNC-PBR Features: ●BNC connector receptacle. Applications: ●Bulkhead type BNC plug receptacle. ●The mating part is in the shape of a plug. ●The main body is nickel-plated brass. ●Applicable panel thickness is 2.0 to 4.5 mm. ●The terminal shape is solder type. Specifications: ●Connector shape: BNC connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 4mΩ or less Voltage standing wave ratio: Operating temperature range: -30 to +85°C Terminal shape: Solder Material/Finish: ●Center contact: Brass/gold plating Outer contact: Brass/nickel plating
