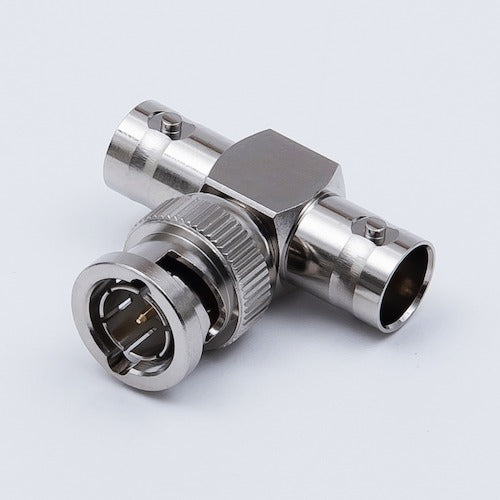

TYC BNC 75Ω Connector Adapter BNCC-TA-JPJ-75 1 piece

TYC BNC 75Ω Connector Adapter BNCC-TA-JPJ-75 1 piece

JAN： 　
connector Electrical and Electronic Components Electronics TYC Connector
¥1,663
¥1,663
Sale Sold out
Shipping calculated at checkout.
Catalog number: BNCC-TA-JPJ-75 Features: ● BNC 75Ω connector adapter. Applications: ● T-shaped BNC 75Ω relay adapter. ● Body is nickel-plated brass. ● Plug-jack-jack type. Specifications: ● Connector shape: BNC 75Ω connector ● Characteristic impedance: 75Ω Rated voltage AC: AC 500V Operating frequency range: 3GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Brass/gold plated Outer contact: Brass/nickel plated
