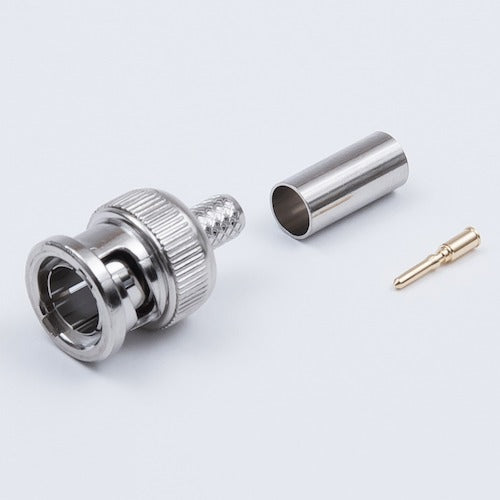

TYC BNC 75Ω Connector Straight Plug BNCP-3SA 1 piece

Catalog number: BNCP-3SA Features: ● Straight plug of BNC 75Ω connector. Applications: ● BNC 75Ω type straight plug compatible with 3C-2V and EM-3C-2E cables. ● Both the center contact and the main body are crimp type, making them easy to process and inexpensive. ● Crimping tool TA-34 or TA-35 is required for installation. Specifications: ● Connector shape: BNC 75Ω connector ● Installation method: Center: Crimping / External: Crimping ● Compatible wire: 3C-2V / EM-3C-2E ● Characteristic impedance: 75Ω Rated voltage AC: AC 500V Operating frequency range: 3GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (0.3 to 1000MHz) Operating temperature range: -40 to +85℃ Crimping tool: TA-34 ● TA-35 Material / Finish: ● Center contact: Brass / Gold plated / Crimping External contact: Brass / Nickel plated / Crimping
